D38999 I, II, III, & IV

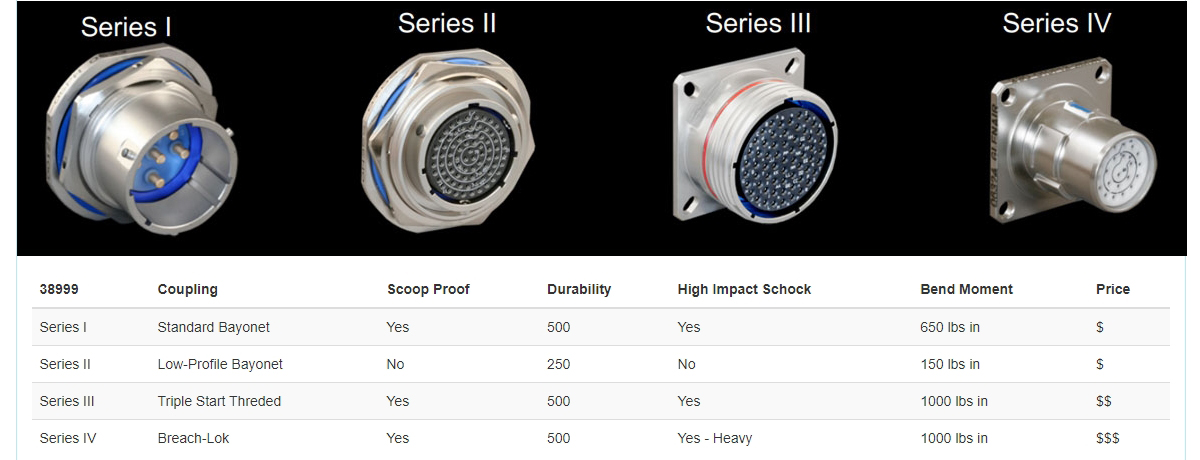

Previously known as MIL-C-38999, MIL-DTL-38999 connectors come in four series: Series I, Series II, Series III and Series IV. They are environmentally resistant connectors that use removable crimp contacts and have an operating range of -65 to +200°C.

Series I connectors are bayonet coupled and have high-vibration properties. They are scoop proof and are ideal for heavy wind and moisture environments. They are utilised when a fast disconnect coupling system is required.

Series II connectors are bayonet coupled, are non-scoop proof, and have a low profile, so are used when weight or space is limited, or in low-vibration, high moisture, and strong wind situations.

Series III connectors are coupled by a quick screw Tri start thread, are scoop proof, and are best suited for normal mating and unmating applications and can be used in high temperature, moisture, wind, or vibration environments when used with the correct accessories. Series III connectors are most commonly use in Military and Aerospace designs.

Series IV connectors are coupled by a Breech-Lok mechanism, are scoop proof, lightweight and suitable for blind mating applications, and they also have high-vibration attributes. They are well suited in high wind and moisture environments when used with the appropriate accessories.

MS26482 I & II

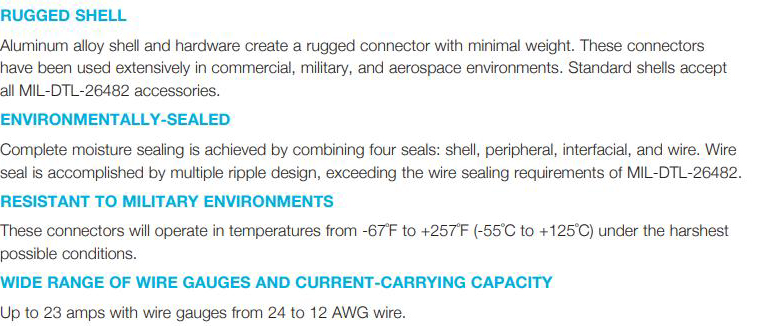

MIL-DTL-26482 Series I connectors combine high-performance reliability for military and industrial interconnect applications.
The series features heavy-duty connectors with solder & crimp contacts and bayonet or “quick-disconnect” coupling.

MIL-DTL-26482 Series II style are supplied without rear accessories but with military-standard rear threads.
This permits a choice from one of the broadest array of endbells, including M85049 endbells, and from low-cost, simple cable tie
versions to fully environmentally-sealed EMI-shielded endbells.

VG96912

These miniature circular connectors of the SJT series adhere to the VG 96912 standard.
They meet the requirements of specification PAN 6433-2, and have all essential features of connectors specified according to MIL-C-38999.
They feature 100% contact protection (scoop-proof), high contact density and HF-tightness.S

VG96929

CGE/ YH products are the European VG military standard for high power / low voltage applications.
These connectors provide a robust bayonet coupling mechanism, outstanding vibration resistance, currents up to 900A and full VG96929 approval.

D-SUB/ MICRO D/ NANO D

D-Sub connectors (also called D-Subminiature) in world-class automated facilities and is certified to build D-Sub connectors for Positronic, ITT Cannon, Cinch Connectivity Solutions, and Amphenol.
These rugged rectangular D-Sub connectors are designed for commercial, industrial and military/defense fields in addition to high performance computer, aerospace, and other complex applications.
We assembles to order the entire D-Sub range from basic commercial and military types (such as MIL-DTL-24308) to Combo-D connector constructions, as well as a broad range of filter D-Sub connectors, and models qualified by NASA/GFSC.
Many contact layouts are available in styles such as straight and right angle mounts, solder cups, crimp, and high density variants.

RACK & PANEL SERIES

VG95234

EV CONNECTOR

ATEX PROOF

Amphe-EX
Cylindrical, Metal Finishing, Threaded Coupling, Harsh and Hazardous Environment, Power and Signal Connector.

Amphenol Industrial Operations, the worldwide leader in explosion proof and hazardous environment interconnects, introduces a new, miniature, explosion-proof threaded connector specifically designed to allow a signal to pass through Zone rated areas using coax, fiber optic cables, or standard copper. The new Amphe-EX™ is complimentary to Amphenol’s industry-proven Star-Line EX™. In addition, the rugged Amphe-EX™ connectors are ATEX and IECex approved for Zone 1 rated applications. Fiber Optic Custom Cable Assemblies available up request.
Features & Benefits
- Conductor options: Copper, Fiber Optic, Coaxial, Mixed
- Flexible Insert Layout Options
- Machined High Grade Aluminum Hardware
- Corrosion Resistant Plating exceeds 300 day salt spray testing
- Aluminum/Brass/Stainless Steel Material Options
- RJ 45 and USB insert options available
- Double lead mating provides ease of mating
- Large wire spacing in backshells allows easy contact installation
- Accepts a wide variety of cable options, including armored styles
- Numerous alternate insert rotations available to prevent miss-mating
Specifications
- SIRA ATEX Certified 07ATEX1229X
- SIRA IECEx Certified SIR 08.0029X
- Cenelec IP 68 rated
- RoHS Compliant Available
- Inserts designed around Mil –DTL 38999 standards

AUDIO/ M55116

TECHNICAL SPECIFICATIONS
Shell:	Stainless Steel, 303, Passivated
Mating:	Bayonet Coupling
Mating Cycles:	3,000
Temperature:	-55°C to +85°C
Insert Material:	Thermoset Plastic
Contacts:	Gold-plated Brass / Silver-plated BeCu (Springs)
Current Rating:	0.5 amperes
Voltage Rating:	60V max
Contact Depression:	1.25-1.75 lbs per contact
Contact Resistance:	.050 Ω max
Insulation Resistance:	1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Dielectric Withstanding Voltage; Sea Level:	500V RMS
Water Immersion:	6 feet of water up to 48 hours (mated & unmated)

Amphenol Nexus Technologies manufactures the complete line of qualified MIL-DTL-55116 audio connectors which are used throughout military and commercial radio systems and intercom systems for ground, vehicle, airborne, and naval communications.

This connector series encompasses waterproof, polarized plugs and receptacles for use in audio frequency circuits at 60 volts maximum potential and 0.5 amperes maximum current. Connectors utilize either crimp sleeve or solder cup contacts. The rigid contacts in the plug connector mate with the pogo-pin, or spring loaded, contacts in the receptacle. In-line plugs and receptacles come with a wire strain relief. Receptacles are also available in panel-mount.

In addition to the standard versions, Amphenol Nexus Technologies also designs and builds a wide variety of custom M55116-type connectors with options such as: PCB contacts, unique shell geometries, grounded and shielded connectors, and right-angle plug connectors. We also designed a complete miniaturized line of M55116 style connectors, the TAC Series, that meets the same performance requirements as the standard connectors in less than half the size and weight.

Amphenol Nexus Technologies specializes in designing and manufacturing high quality audio-style connectors, electromechanical devices, low voltage connectors, push button switches, and more. We have over 50 years of solving unique customer needs quickly. As part of the Amphenol Military & Aerospace group, we can collaborate to provide unmatched product and technological solutions for any system need.
